Pressure Cleaning Nozzles 1/4 & 1/8

Let’s Understand Some Fundamentals About Pressure Cleaners | Nozzle Tips and Sizes to Fit Your Pressure Washer

The most frequent query we pose to operators yields nearly identical responses every time.

* How well does your machine perform? I’m not sure!

* Are you aware of the size of the hole you are using? No, I’m sorry.

Blue Tongue Industries will set up all of your accessories and ensure that your machine is properly equipped when you make a purchase from us. Would you like to view the price range for pressure cleaning? If so, you are fortunate.

Take a look here: Pressure Cleaners

Understanding your requirements is crucial. If your machine has a set RPM, you can increase the hole size to decrease the pressure as necessary. Yet, maintaining the proper nozzle size enables the pump and unloader to work harmoniously and as they should.

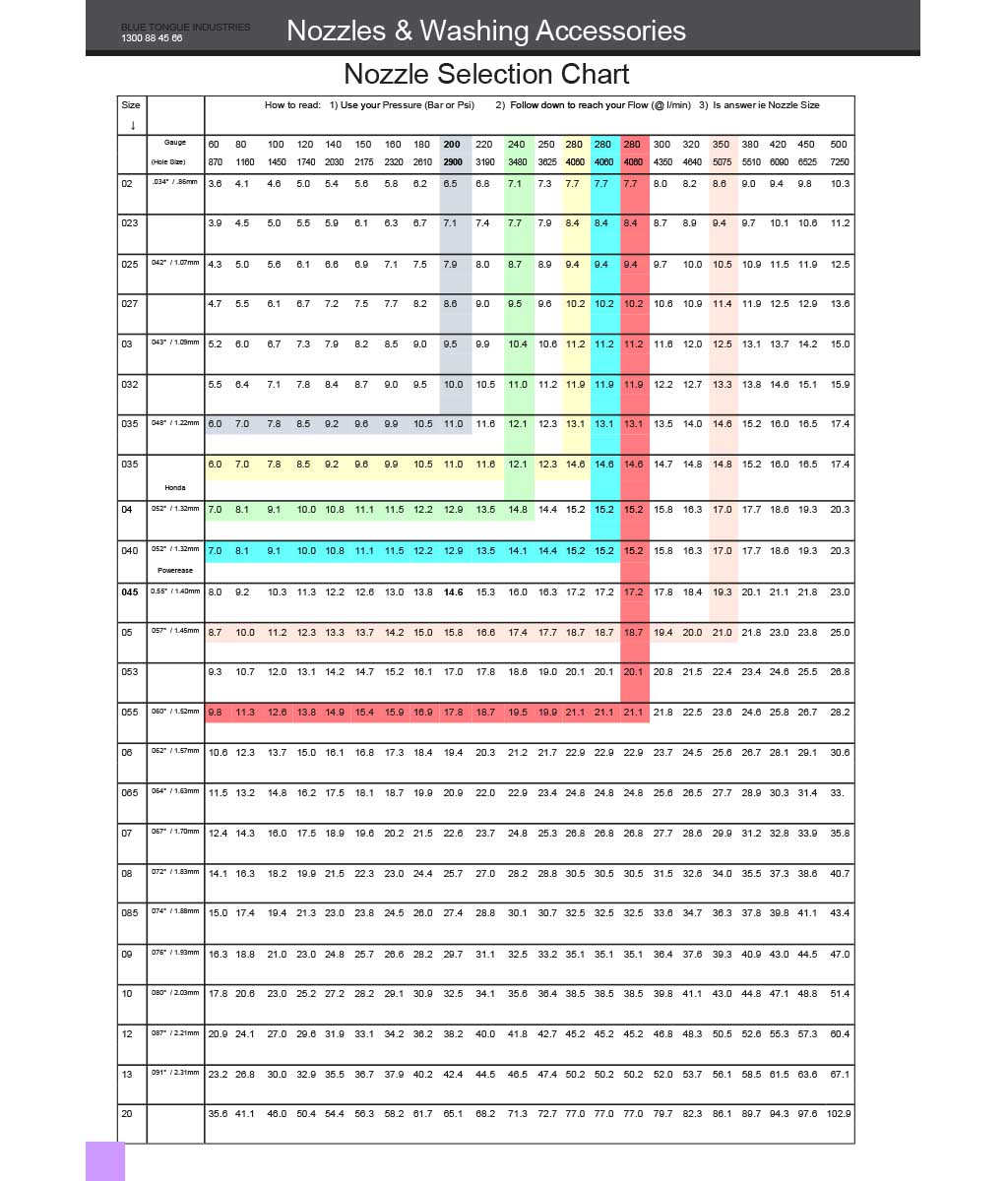

You can check your requirements by looking at the reference chart below:


The output and smooth operation of your high-pressure cleaner depend on the choice of nozzle. In the event of a small nozzle, bypass mode is always activated by the device. increasing wear.  The machine will have a low output and reduced pressure if the nozzle is too wide.

How can you choose the best nozzle? 1. Ensure that you are aware of the flow and pressure of your machine. For instance, a 21 l/min pressure washer with a working pressure of 4000 psi. 1. Locate your pressure rating at the top of the chart, or as close to it as possible. 2. Then scroll down until you get the LPM as a flow. 3. You can then follow the chart to the left, to get the correct nozzle sizing. 4. It is preferred to go larger than smaller with your selection.

What does the number “045” in a 25 045 Nozzle mean? The “045” serves as a benchmark for estimating the orifice size of nozzles. The spray nozzles are rated in USGPM and have a flow point of 4000 psi. Consider the following examples to help with comprehension: – A 045 nozzle produces 4.5 USGPM at 4000 PSI; a 060 nozzle produces 6.0 USGPM at 40000 PSI – A 030 nozzle produces 3.0USGPM at 4000Psi.

The tip angle ranges from -0, 15, 25, 40, and even more degrees.

0° Blasting Nozzle This nozzle emits a strong stream of water. Use caution to prevent gouging wood or damaging delicate surfaces. Removes weeds from sidewalk cracks, stains from metal, steel, concrete, and masonry, and caked-on dirt from mower decks and equipment. Aim the spray at a 45-degree angle to the surface and use it as a scraper to remove paint, grease, and debris. Getting the surface ready (removing peeling paint & mildew stains, cleaning gutters & downspouts).

The industry standard and most frequently used nozzle is one with a 15 degree angle, and it frequently comes with the equipment. Under higher pressures, they may be combative, but reducing the pressure or floating tools will allow less impact.

With a 25° Flushing Angle Nozzle Since it has a smaller spray pattern than the 40° nozzle and a more concentrated spray pressure, this nozzle works well for flushing dirt, mud, and grime. sweeping up debris from roads, kerbs, and walkways; cleaning the floors of stables. cleaning and scouring the bottoms of pools.

With a 40° wash, the nozzle. Its spray pattern is perfect for rinsing and light washing since it uniformly distributes water over a large area. Examples of applications include washing cars, washing windows, washing metal siding, and spraying sidewalks, driveways, and patios.
