Soft Wash Mini Cyclone System, 12 Volt

$9,250.00 exl. GST

Soft Wash Mini Cyclone System, 12 Volt


SKU: Soft Wash Mini Cyclone System, 12 Volt

Categories:

Description

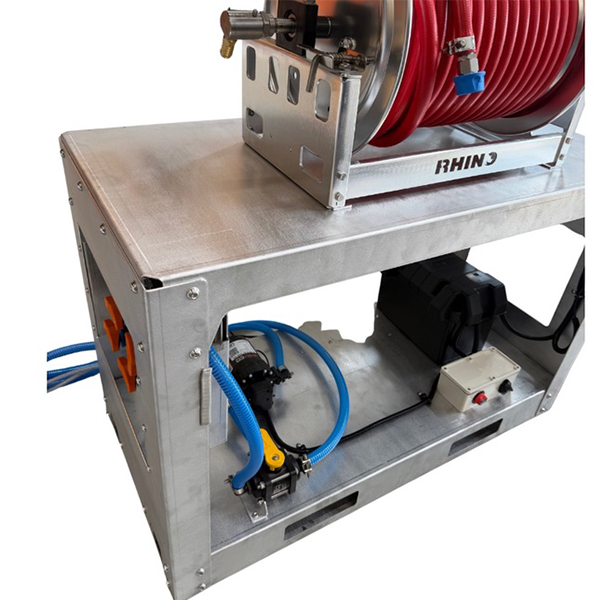

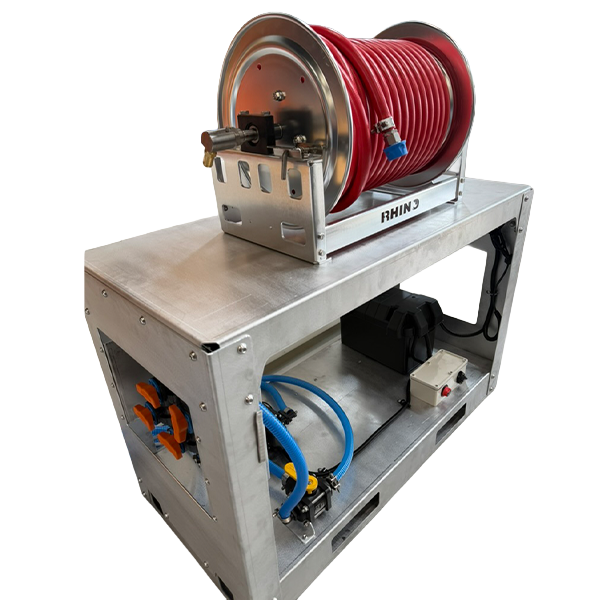

Soft Wash Mini Cyclone System:





Pump:  Choose between Ever Flo 20lpm at 60psi or Delavan 26lpm at 100psi

Tanks:  *  Water tank optional,  * 150 lts chemical tank optional, *  25 lts soap tank x2 optional

Hose reels:  (1) HD  reel for chemical spray hose, (1) HD stainless steel reel for water tank fill hose (optional)

Hose:  60m’x1/2″ chemical-resistant spray hose. 100′ water tank fill hose with garden hose fittings (optional)

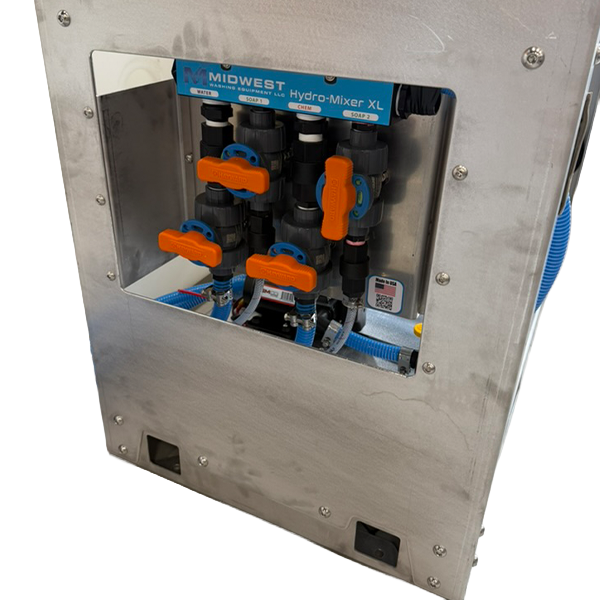

Proportioning:  Hydro-Mixer V4, 3 metering valve-water, bleach, soap.  Mounted to HD aluminium plate.

Electrical:  HD wiring and on/off switch if required, onboard weatherproof  10 amp charger.

Battery: 120 amp hour deep cycle lead acid, plus battery box

Skid:  HD aluminium, Australian Made

Misc Items:  Chemical resistant poly trigger, 18″ stainless steel wand, J ROD w/4 nozzles

Misc Parts:  Float shutoff in the water tank (optional), inlet strainer on water tank (optional), all fittings PVC, poly or stainless steel

Flush valve: 3 way

Dimensions:  1200mm Wide and 575mm Long

**each system is custom-made and may vary slightly**



Warranty:

  1. 3-Month Warranty on Workmanship: This warranty covers any defects or issues related to the quality of workmanship performed on the product or service for a period of three months from the date of purchase or completion of the work. Workmanship refers to the quality of the labor or craftsmanship involved in producing or installing the product.
  2. 3-Month Commercial Warranty on Pump Seals and Diaphragms: This warranty provides coverage specifically for pump seals and diaphragms in commercial settings for a period of three months. It implies that these components are expected to function properly within normal commercial usage conditions for the duration of the warranty period.

It’s important to review the terms and conditions of these warranties for any limitations, exclusions, or conditions that may apply. Customers should also understand how to initiate a warranty claim and what documentation may be required to validate the claim.
