ReelCraft Heavy Duty 18 in. Aluminum Motor Driven Hose Reel

NEW

$1,900.00 exl. GST

ReelCraft Heavy Duty 18 in. Aluminum Motor Driven Hose Reel

Description

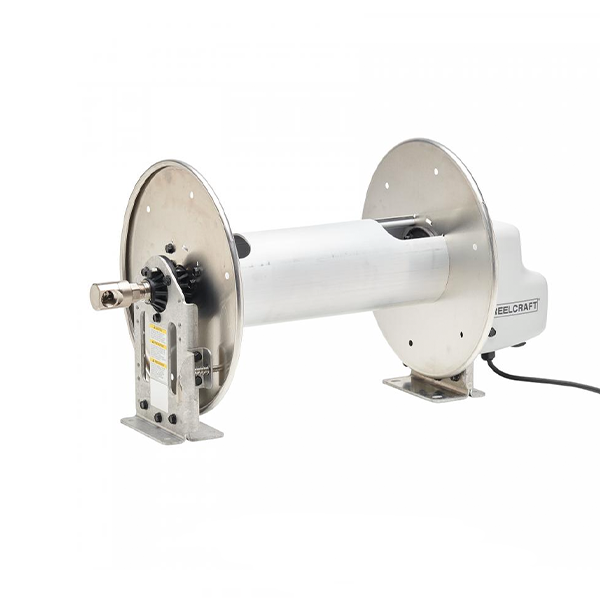

E23018 H 310 – Heavy Duty 18 in. Aluminum Motor Driven Hose Reel

Optimized for on-the-go versatility, our NEW Series 20000 motorized aluminum hose reel is designed with the work day in mind. This compact and lightweight reel is fully customizable to fit your space and needs. Stackable and ready to be mounted at any orientation, you’ll love how much time and energy you’ll save with the direct-drive motor that operates at a flip of a switch.

  • Aluminum construction is 50% lighter in weight than carbon steel and corrosion resistant.
  • The aluminum surface undergoes a tumbling process, resulting in a matte, non-reflective finish with softened edges.
  • Hardware includes a two-coat plating process that resists salt spray and acids.
  • 3/4″ fluid path constructed of 316 stainless steel is designed to handle harsh chemicals. This model includes a carbon steel swivel rated to 4500 PSI.
  • Includes spring loaded latching mechanism and drag brake to control over spooling.
  • Innovative design allows for the motor or swivel to be easily swapped from one side to the other.
  • Drive type – 12 V DC motor; lowest amp draw on the market at 20 amps
  • Motor – direct drive with no chain and sprocket; switch incorporated into motor cover
  • Easy to convert between hand crank and motor driven
  • Hose not included
  • Made in the USA

Reel Specifications and Dimensions

Weight 26.5 lbs
Series 20000
3/8″ Hose Capacity 500′
1/2″ Hose Capacity 300′
5/8″ Hose Capacity 250′
3/4″ Hose Capacity 200′
Pressure 4500 psi
Inlet 3/4″ NPT(F)
Reel Outlet 3/4″ NPT(F)
Hose Included No
Max Temperature 210 °F
UPC 699567032458
Carton Dimensions 30″ x 18″ x 18″



A 34″
B 22.88″
C 17″
D 24″
E 16″
F 17″
G 9″
H 5″

Fluid Path Materials

Internal Fluid Path Stainless Steel
Swivel Assembly Carbon Steel
Swivel Seal FKM
