$272.00 exl. GST

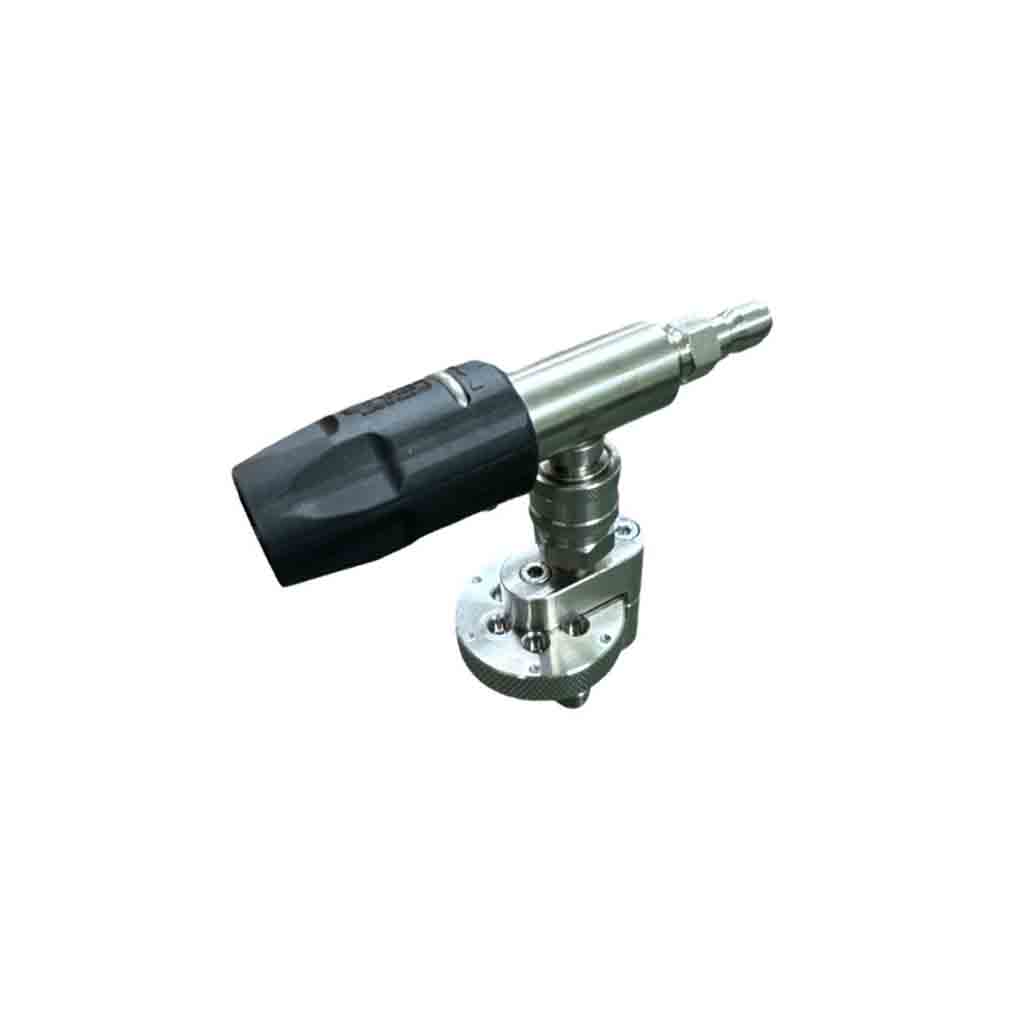

SwitchTip® Chemical Applicator Proportioning Upgrade
Description
The SwitchTip™
Solving the Proportioner Problem!
No more loosing tips, no more switching tips mid job and no more plier gnarled proportioners!
Build entirely from Stainless Steel and carrying a Watertek 3 Year Warranty* the SwitchTip is an industry first! Encompassing the ball valve functionality and the ability to strengthen or weaken your mix on the fly.
The six position dial has
Closed (Off)
P1 (Grey Tip)
P2 (Black Tip)
P3 (Beige Tip)
P4 (Red Tip)
P5 (Open)
Water to Chemical Dilution Chart
To select a ratio, turn the wheel to the desired dilution according to the metering chart below.
Wheel Position vs Flow Rate
| Wheel Position | 8 LPM | 12 LPM | 15 LPM | 21 LPM | 25 LPM | 30 LPM |
|---|---|---|---|---|---|---|
| OPEN 5 | 1 : 1 | 1.5 : 1 | 1.5 : 1 | 2 : 1 | 2.5 : 1 | 3 : 1 |
| 4 | 1.5 : 1 | 2 : 1 | 2.5 : 1 | 3.5 : 1 | 4 : 1 | 5 : 1 |
| 3 | 3 : 1 | 4.5 : 1 | 5.5 : 1 | 7.5 : 1 | 9 : 1 | 11 : 1 |
| 2 | 6 : 1 | 8.5 : 1 | 10.5 : 1 | 14.5 : 1 | 17 : 1 | 20.5 : 1 |
| 1 | 9.5 : 1 | 13.5 : 1 | 16.5 : 1 | 21.5 : 1 | 25 : 1 | 29 : 1 |
Easy Conversions:
- 1 GPM = 3.8 LPM
- 100 PSI = 6.9 BAR
- 2:1 = 2 parts water to 1 part SH
- 4:1 with 15% SH = 3% final mix
This gives you the most used Proportioner tip sizes plus an open port, equivalent to having no tip fitted this will get you the strongest mix for the current flow and pressure you are working with.
Connects straight to the Mini Plug on your Chemical applicator
Conversion kits available for “Other” Applicators fitted with 10mm barb. Just select ‘add 1/8″ Mini Plug’
Includes:
Switch tip body
Conversion kits for Mini QR M and 10mm barb
Mini QR F
